Powerpipe-LUX system is an innovative device with a dome reflector collection furniture which guarantees the greatest light contribution throughout the day. The tracking system with GPS guidance located on the skylight that continuously moves the reflector in the best position to obtain the best reflection of light inside each individual device. A little solar panel, in the system, transforms sunlight into electricity that will be transferred to the moving mechanism. Mirror angle catches sunlight even at medium/low angles of inclination. More devices can communicate to each other through a mother cell so that all systems are perfectly synchronized with each other.
Light catching dome (UNI EN 1873: 2006) is made of compact shockproof polymethylmethacrylate (PMMA RESIST); the exposed part is naturally protected against UV rays. This system is able to offer:
- Light cone projection without shadows and with high lighting performance.
- Almost inexistent solar radiation and directly proportional to the length of the duct.
- Considerable electricity saving if combined with a twilight control management system.

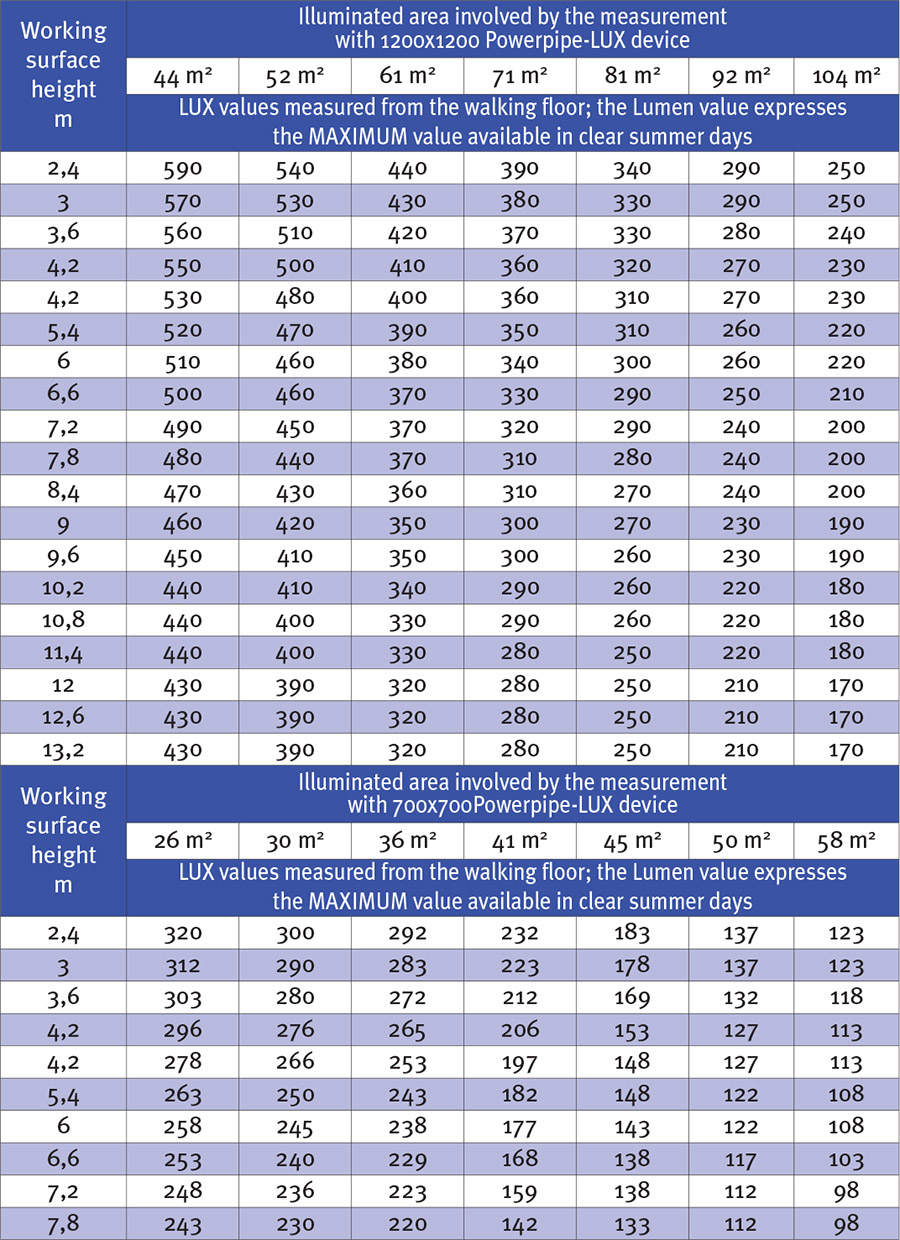

- Possibility of light engineering report with calculation of the average supplied LUX as required by the new ADF (average daylight factor) standard that requires the amount of LUX produced.
Powerpipe-LUX consists mainly of tubular conducts which through a highly specular inner surface carry light inside any building along many meters without losses. Otherwise to other skylight on the market, our system chases the sun so as to increase efficiency.
Powerpipe-LUX transports sunlight to the lower levels through a specular duct in a more effective way compared to normal skylights or roof domes.
For this reason, Powerpipe-LUX will bring the most possible light to your interior space. The Powerpipe-LUX System is available in the following sizes:
- mm 700x700
- mm 1200x1200
The Powerpipe-LUX System can be integrated with: BLINDING KIT able to regulate the flow of light through the electrical control of a simple "butterfly" valve adjustable at the closure. Powerpipe-LUX is a new generation product, that allows achieving better life quality and significant energy savings.
